EECL has extensive experience in the design and manufacture of high performance microwave switch matrices, with capability up to 44 GHz. Our solutions are engineered to deliver low loss, high isolation, and excellent repeatability, ensuring reliable performance in demanding environments. We provide fully bespoke designs tailored to project requirements, from compact configurations to large, highly complex routing systems. With inhouse RF simulation, precision mechanical engineering, and advanced test facilities, we control the entire development process to guarantee quality, scalability, and long-term dependability of every switch matrix we deliver.

To achieve best-in-class performance, our switch matrices incorporate several proprietary techniques and in-house capabilities that set us apart. We utilise custom microwave absorber integration and precision shielding gasket dispensing to minimise interference and achieve exceptionally compact designs without compromising performance. Each network is characterised using Time Domain Reflectometry (TDR), enabling us to guarantee consistency and repeatability in both phase and magnitude across every path. Thermal stability is ensured through integrated oven based temperature control, while our ultra-fast, fully reconfigurable firmware and control systems provide unmatched flexibility and responsiveness. These innovations allow us to deliver switch matrices that combine superior RF performance, reliability, and scalability in ways no other provider currently matches.

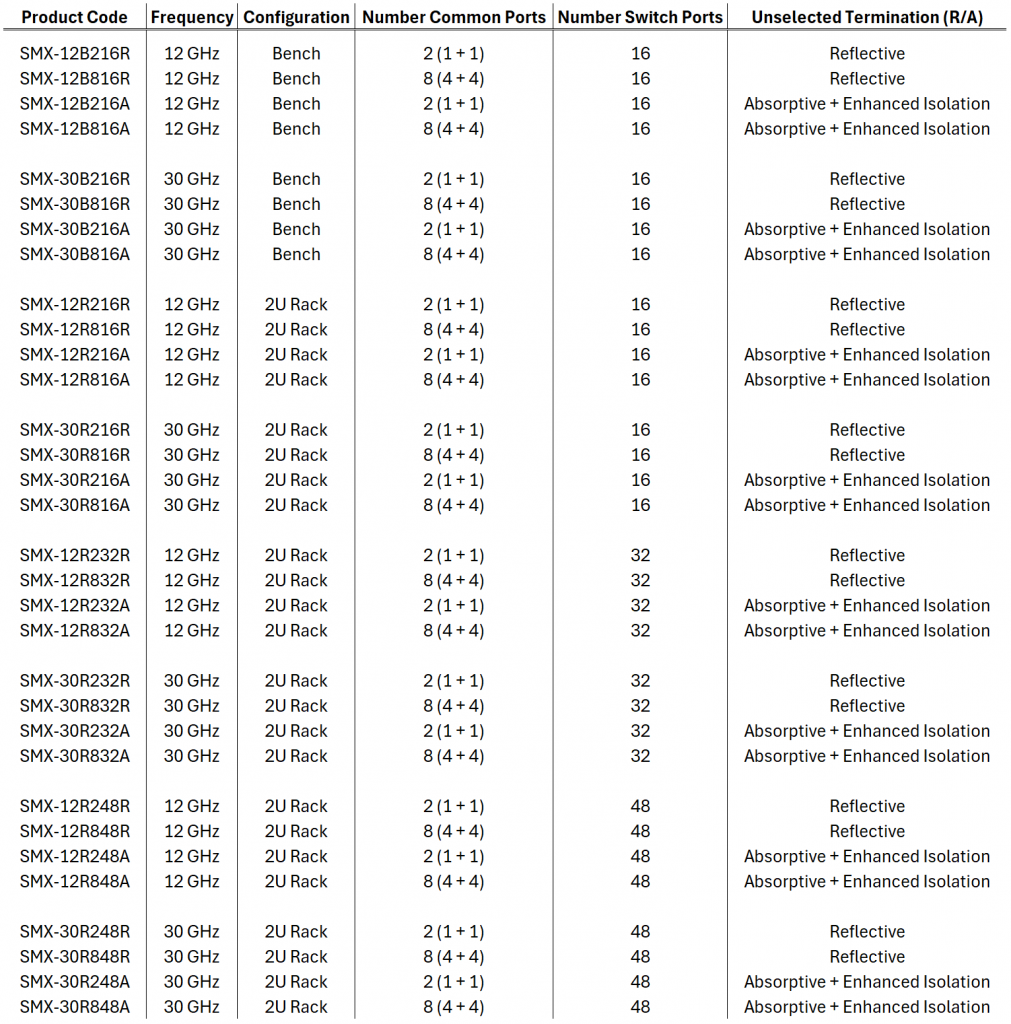

Our switch matrices are designed with maximum flexibility in mind, available as either compact benchtop units or fully integrated rack-mounted systems. They can be configured with virtually any number of ports and customised to match the exact routing requirements of each application. Control is provided via Ethernet or USB interfaces, with intuitive LED indicators that clearly display active paths and ports in real time. For highspeed test environments, intelligent sequencing can be programmed through TTL trigger lines, enabling automated path selection and significantly accelerating measurement workflows. This combination of adaptability, ease of use, and intelligent control ensures our solutions seamlessly into any customer’s setup while delivering exceptional performance.

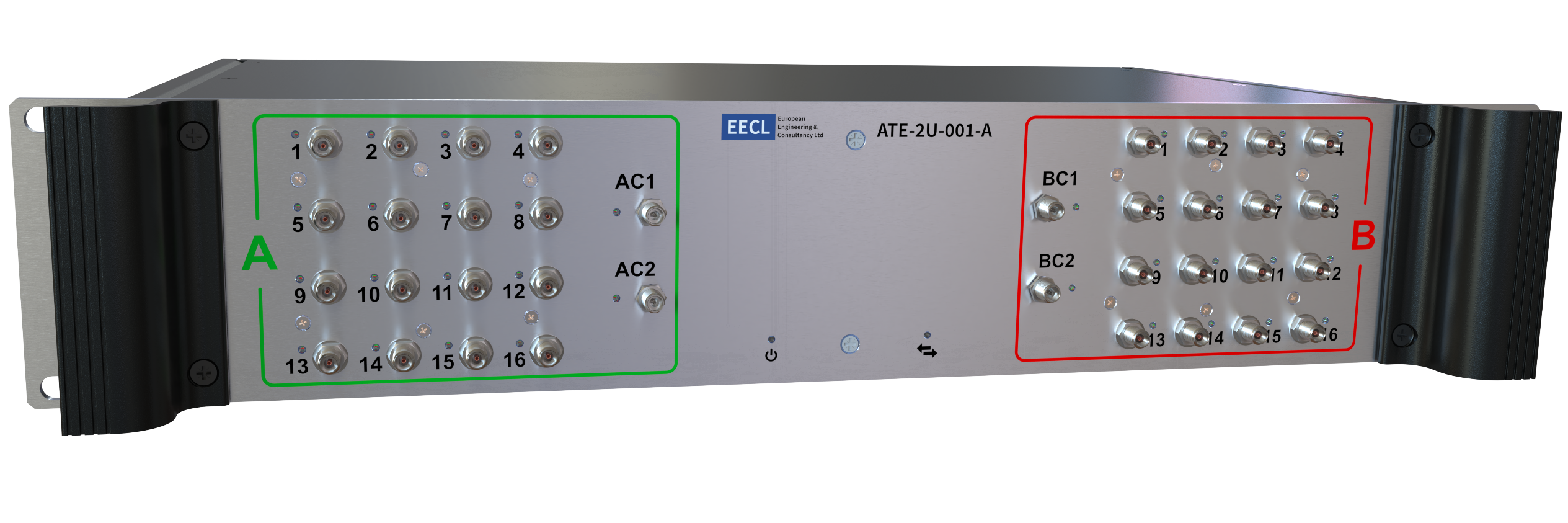

Bench or Rack Mount Available
