8×16 Port Solid-State Full Cross-bar Switch Matrix. 16KHz to 10GHz / 30GHz options.  Bench Top Version

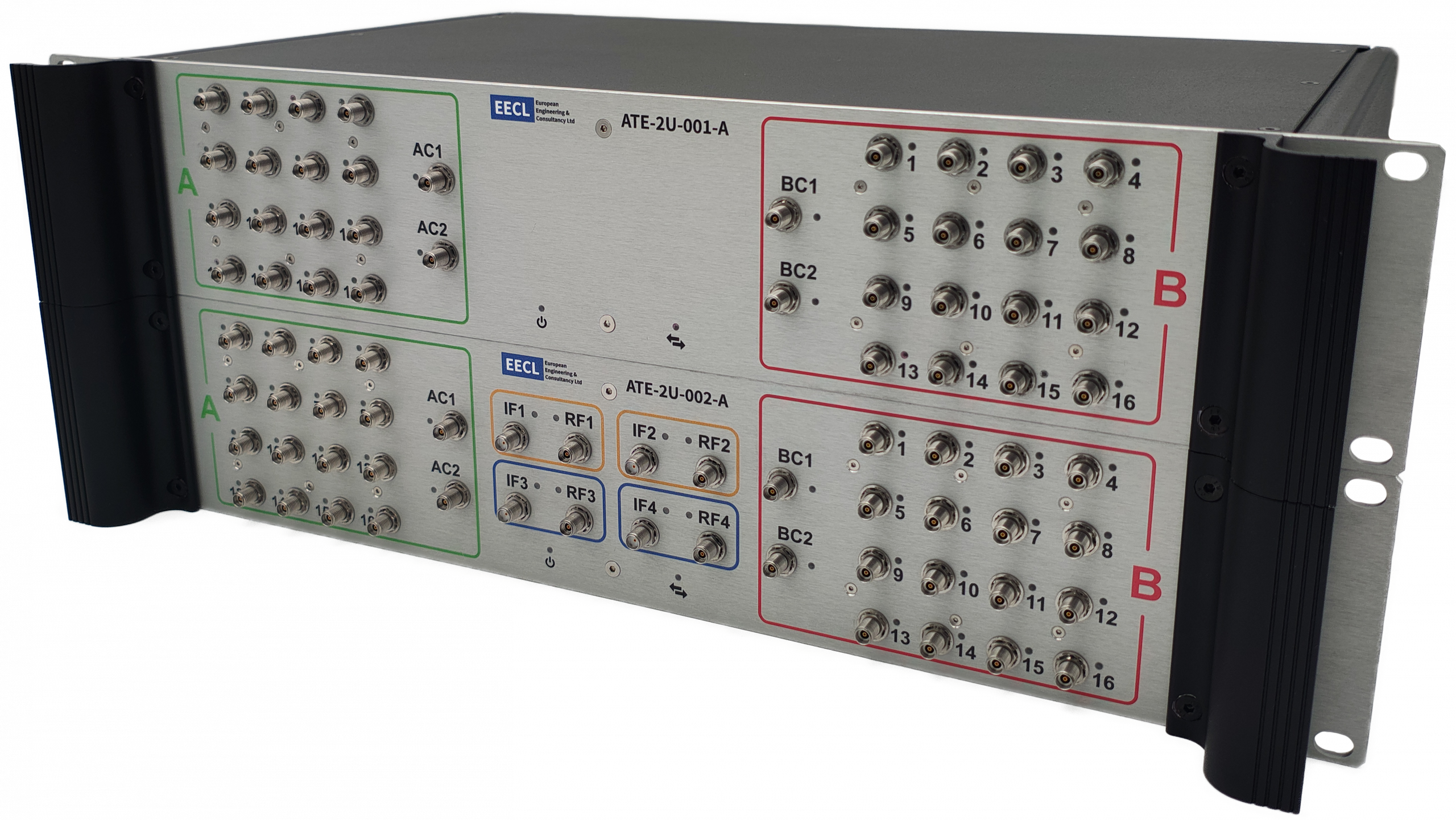

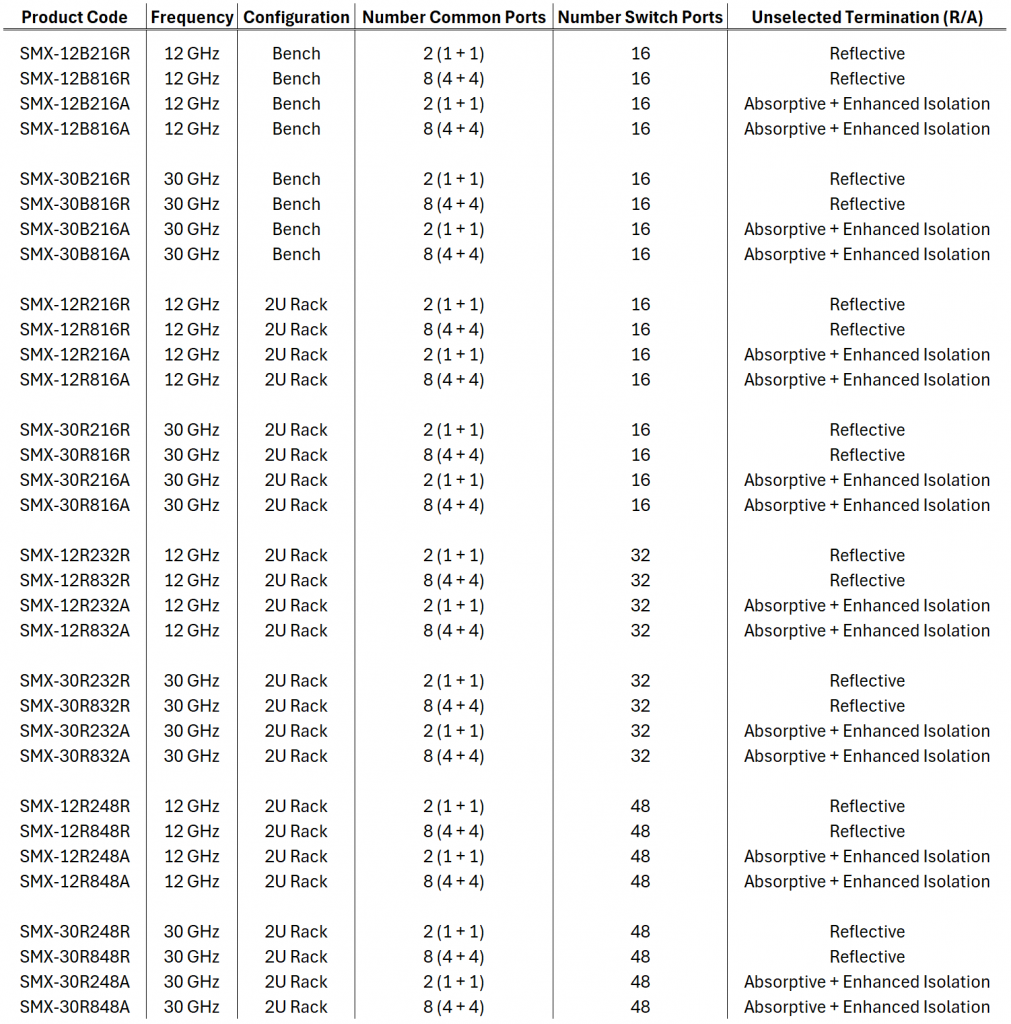

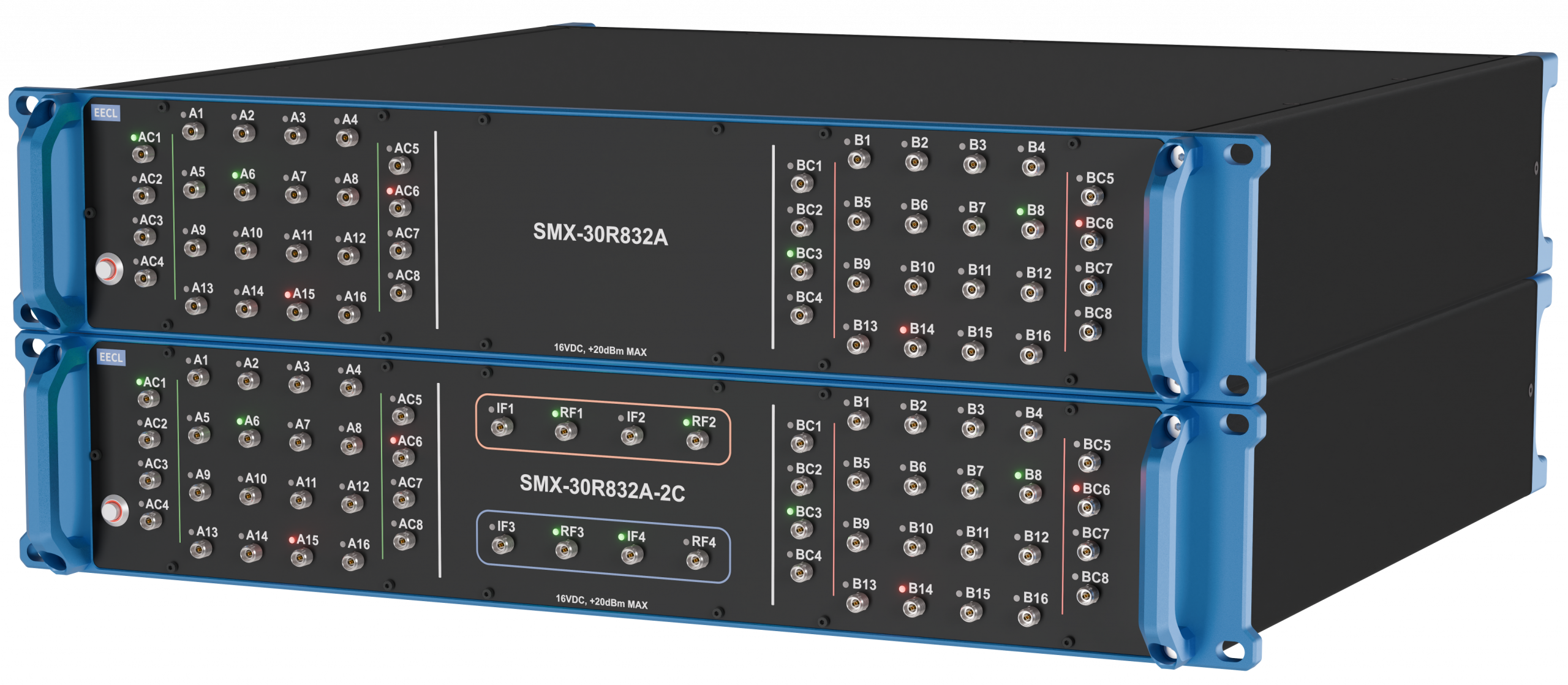

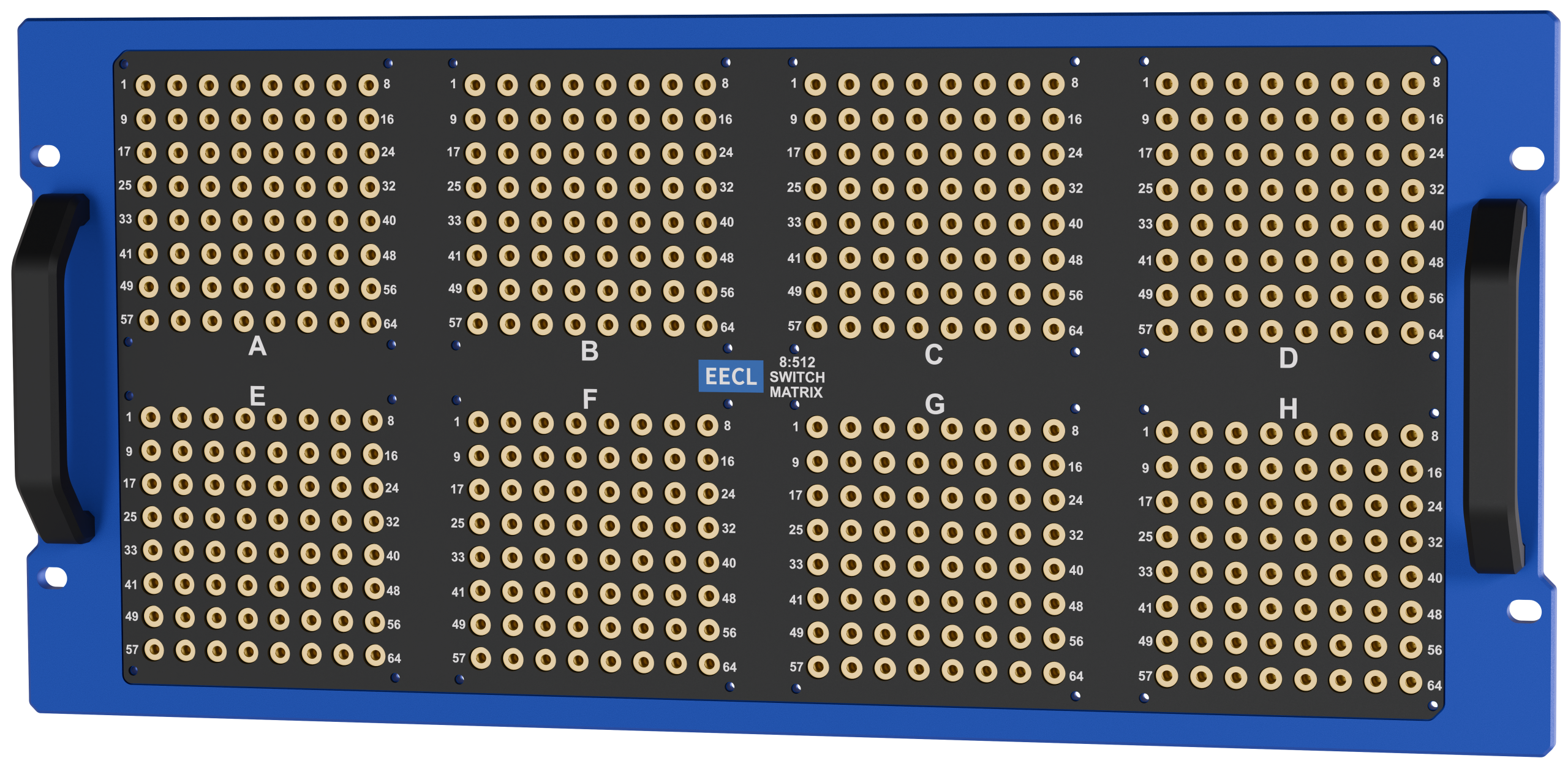

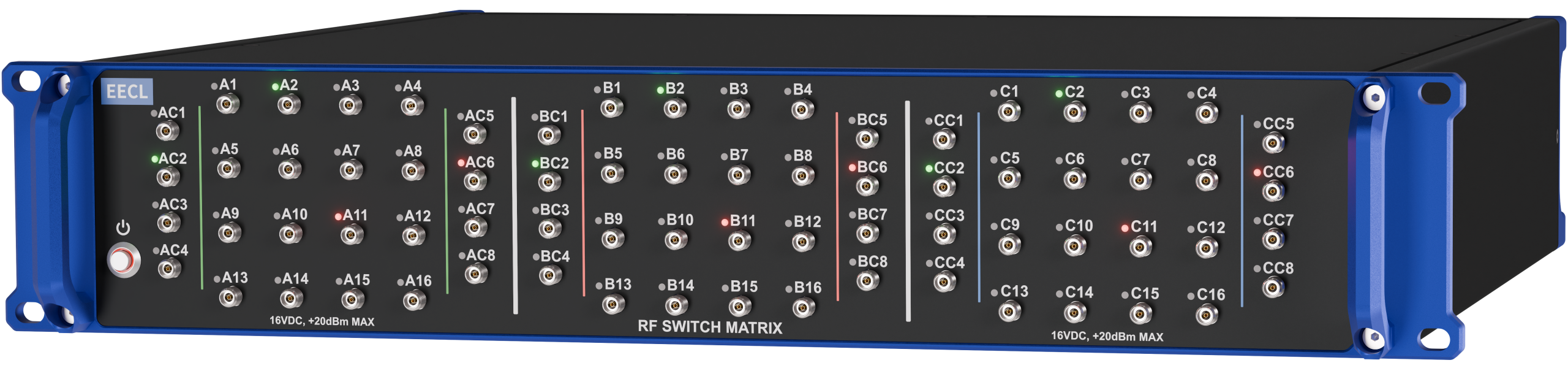

Introducing the Switch Matrix

The EVT1016 is a high-speed, USB-controlled RF cross-bar switch matrix, specifically designed for versatile and dynamic routing of RF signals. With a full cross-bar architecture, the EVT1016 can switch any of its 8 common ports to any of the 16 I/O ports, offering unparalleled flexibility in routing and signal distribution. This solid-state matrix enables bi-directional RF paths over a broad frequency range of 16 kHz to 10 GHz (or up to 30 GHz), maintaining minimal insertion and return loss. Each port is internally DC-blocked and capable of handling up to 25V, making it durable and resilient for demanding RF environments.

In contrast to mechanical switching solutions, the EVT1016’s solid-state design ensures each port is permanently matched to 50 ohms, including unselected ports, providing exceptional
impedance matching ideal for vector network analyser (VNA) extension applications. The module also integrates a precision-controlled internal oven, which can sustain stability over
time, limiting signal drift to less than 0.02 dB, with near-zero drift and exceptional repeatability.

Equipped with SMA on the 10GHz version and 2.92mm connectors for the 30GHz version (other connector types available on request), the EVT1016 is suitable for automated test environments, with the added flexibility of USB and Ethernet control interfaces. For time-sensitive applications, the EVT1016 supports the loading of predefined switching sequences, which can be triggered by logic signals, achieving rapid switching with microsecond-level timing. The module is also capable of standalone operation, powered directly through USB.

Download SWITCH MATRIX DATASHEET

.

.

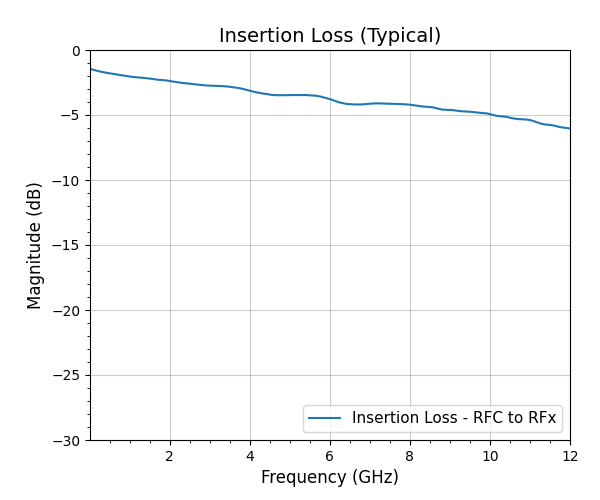

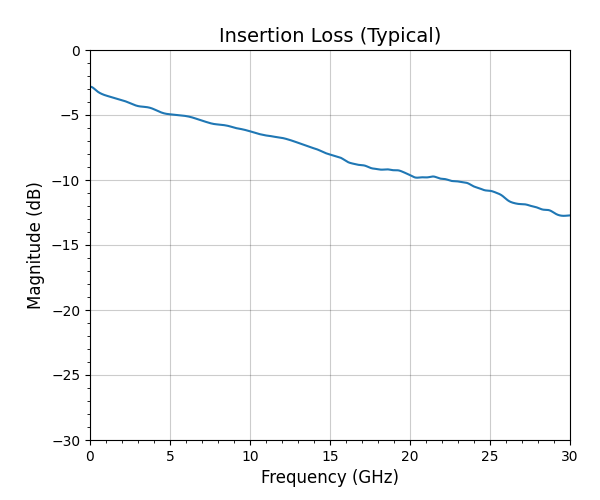

16 Way Loss2.4dB @ 100 MHz, 2.8dB @ 1 GHz, 3.2dB @ 5 GHz, 4.2 dB @ 8GHz, 4.8dB @ 10 GHz.  8.2dB @ 30GHz
64 Way Loss2.5dB @ 100 MHz, 3.4dB @ 1 GHz, 6.2dB @ 5 GHz, 8.3 dB @ 8GHz, 10.8dB @ 10 GHz.  15.2 dB @ 30 GHz

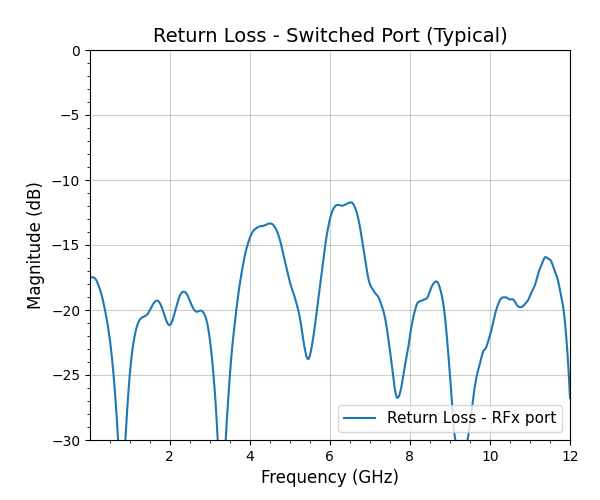

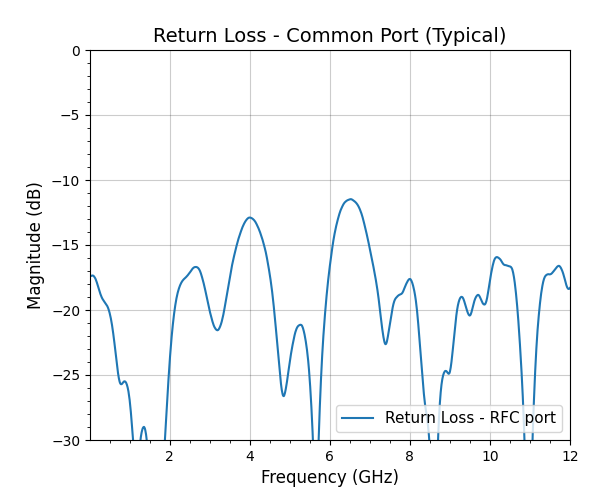

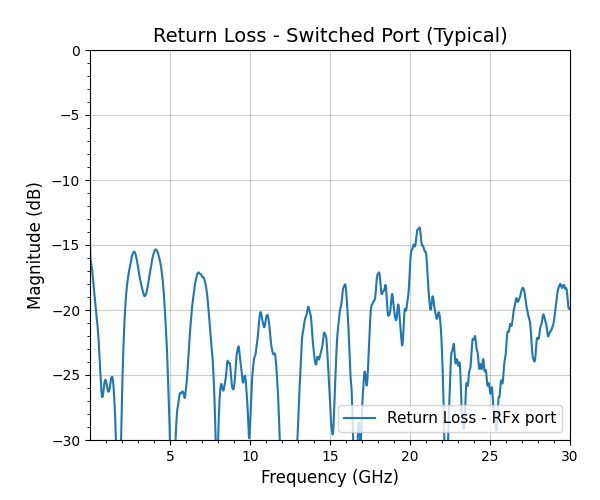

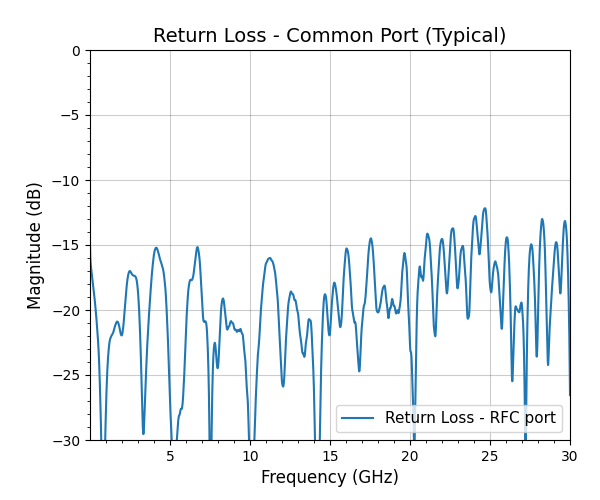

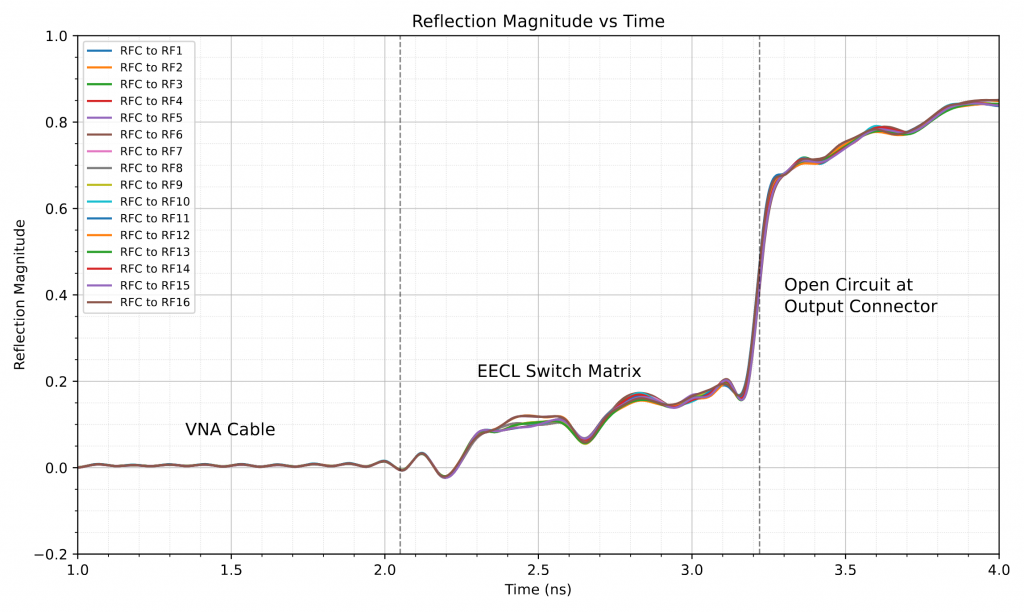

Port Match> 10dB across all ports and all bands
Power Handling+37 dBm, 5W maximum, recommended: +26 dBm.
Hot Switch +26 dBm.

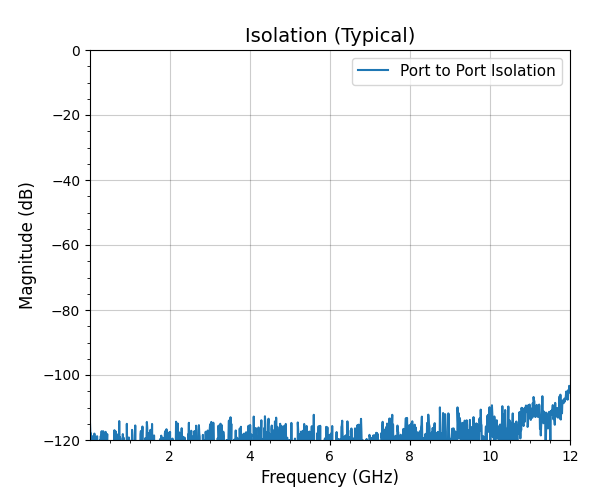

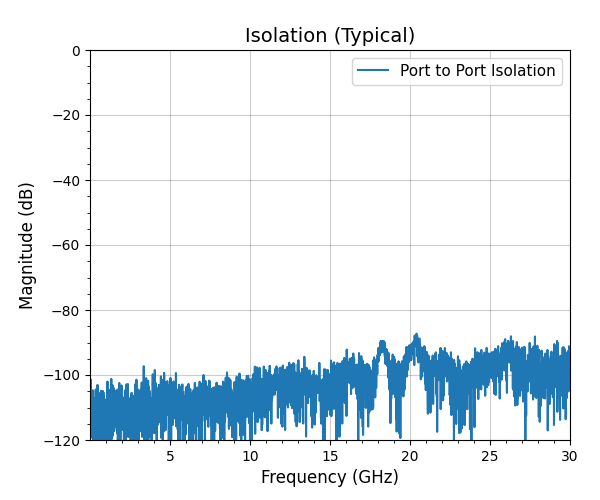

IsolationTypical, 50 to 110  dB depending on port combination selected.
IP3+60 dBm
Speed10ms switching speed
Port Type50Ω, 2.92mm / SMA Common, SMPM / 2.92mm / SMA user ports.
TriggerTTL 3V3
Control InterfaceMini USB 2.0
Oven PowerUSB – 0.6 to 2A (25°C to 70°C control) depending on ambient
Operating Temperature-30 to +70 deg C
Mass450g 64 way, 409g 16 way. (Mass is approximate as port type deviates results)

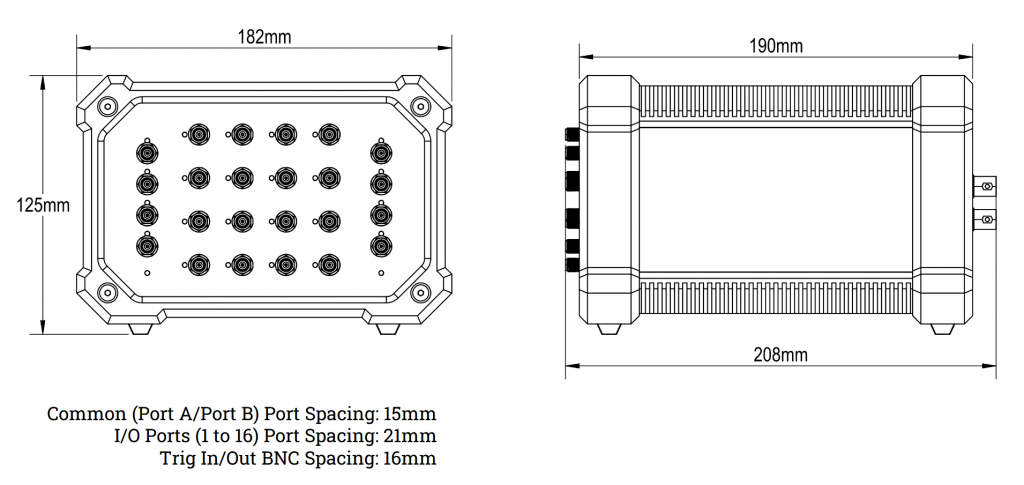

Size180mm x 160mm x 25mm 64Way, 83mm x 108mm x 18mm 16Way (without ports)
  • Test automation
  • Test equipment extender
  • Antenna characterisation
  • 5G & phased arrays
  • Cross-correlation
  • 8 common ports, 2 switch paths
  • 16 switched ports
  • Low loss from 16KHz to 10/30 GHz
  • Unselected ports terminated
  • High power handling
  • High linearity
  • High isolation
  • Ultra low (near zero) drift
  • Oven controlled for repeatable performance
  • Fast switching

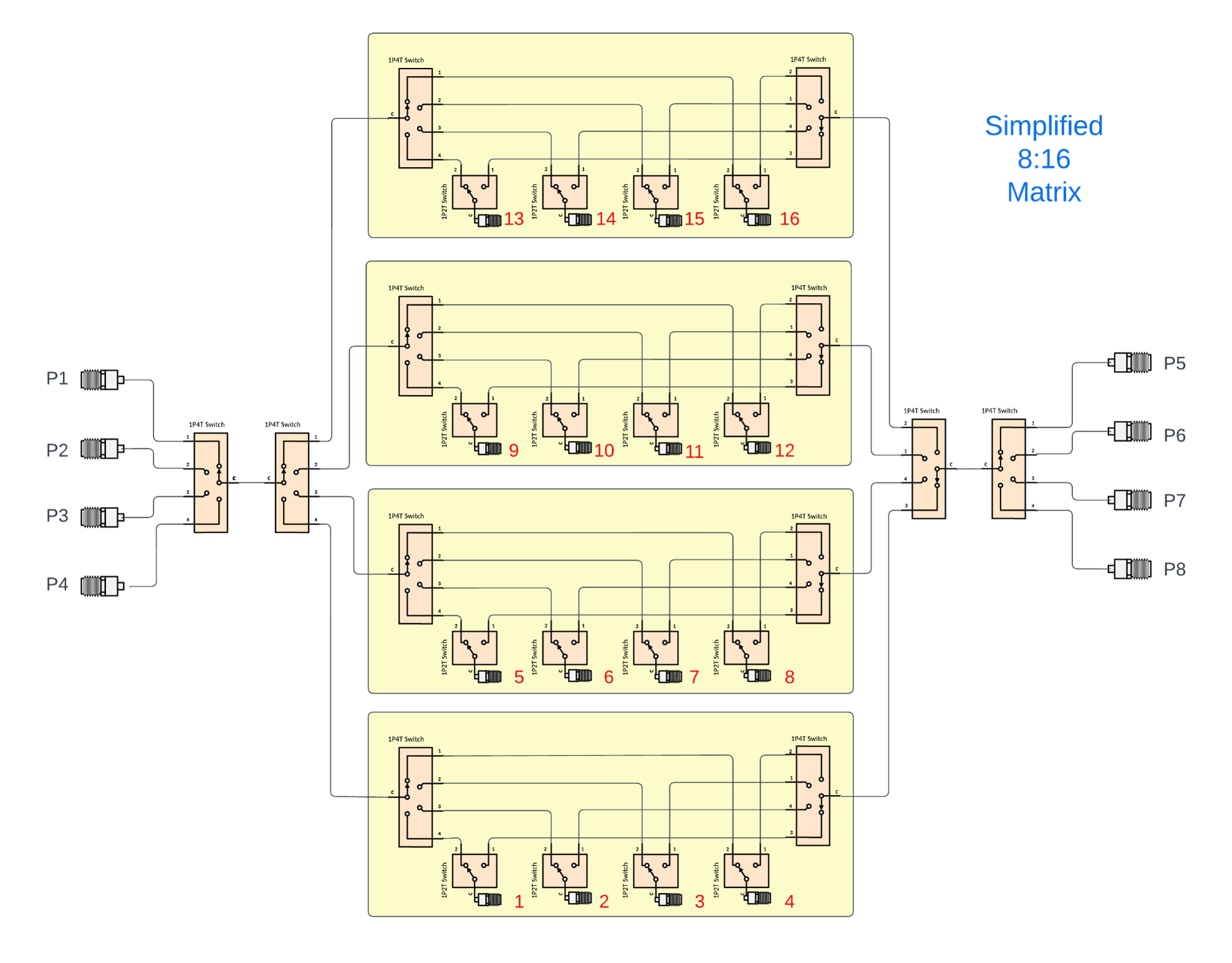

A simplified system diagram is shown in order to demonstrate how the signal routing can be configured. All ports maintain a matched impedance state regardless of which path is activated.

Software

Our software suite seamlessly integrates with the module, providing a powerful and user-friendly interface for configuring and controlling the system. Compatible with C, LabView, and MATLAB, the software allows for effortless automation of complex tasks and real-time data acquisition. Users can set up power supplies, measurement configurations, and pulse parameters through an intuitive dashboard, with the ability to monitor all channels simultaneously. Advanced features include automated script execution, real-time graphing of voltage and current trends, and customizable trigger conditions for precise timing. The software also supports remote access via Ethernet or USB, enabling control from any networked location, making it ideal for both lab-based setups and large-scale distributed testing environments. Additionally, all data collected can be logged, exported, and analysed for detailed post-test reporting, streamlining workflows and improving efficiency.

  • Programable and versatile
  • Easy to use
  • Compatible with LabVIEW, Matlab, C and all other environments
  • USB or Ethernet interface
  • External and Internal trigger with programable switch sequences

.
