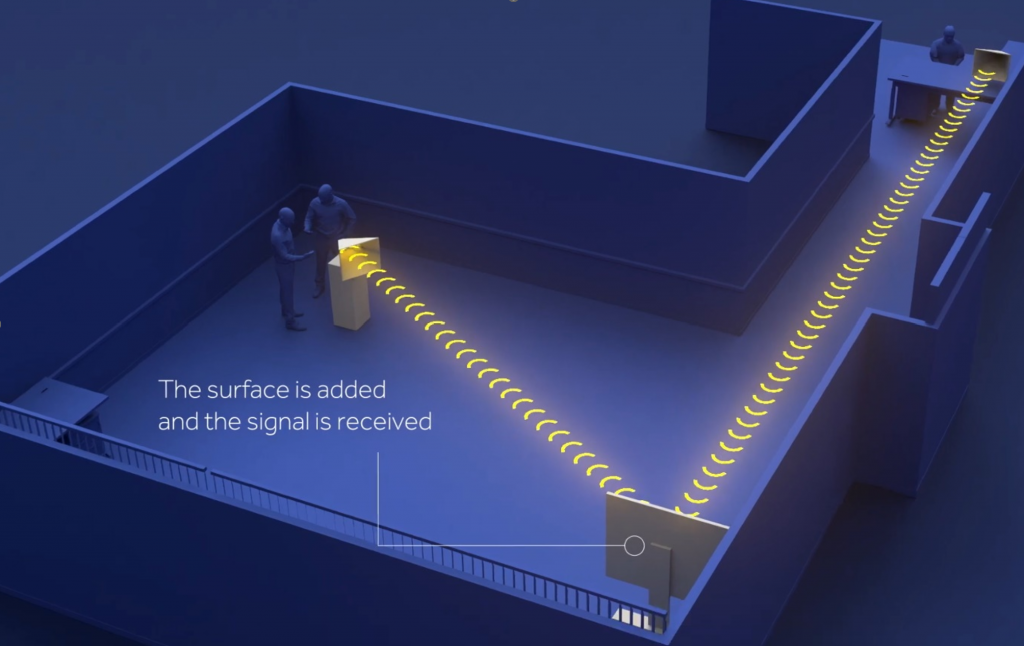

EECL was approached by the Faculty of Engineering to design and manufacture two large-scale reflector metamaterial antennas—an ambitious and highly challenging project. These antennas were intended to reflect 6G beams around corners, requiring two distinct variants: one with a passive surface providing a fixed angle of reflection and another with an active surface capable of electrically steering the beam.
The concept existed only on paper, with each antenna needing to measure approximately 3m x 3m. The designs required the use of fragile, heavy ceramic substrates with strict electrical property specifications to ensure the desired RF performance. Adding to the complexity, the project coincided with a COVID-19 lockdown, and the antennas had to be manufactured, assembled, and delivered within just 12 weeks. They also needed to be easily movable on wheels within a demonstration environment.

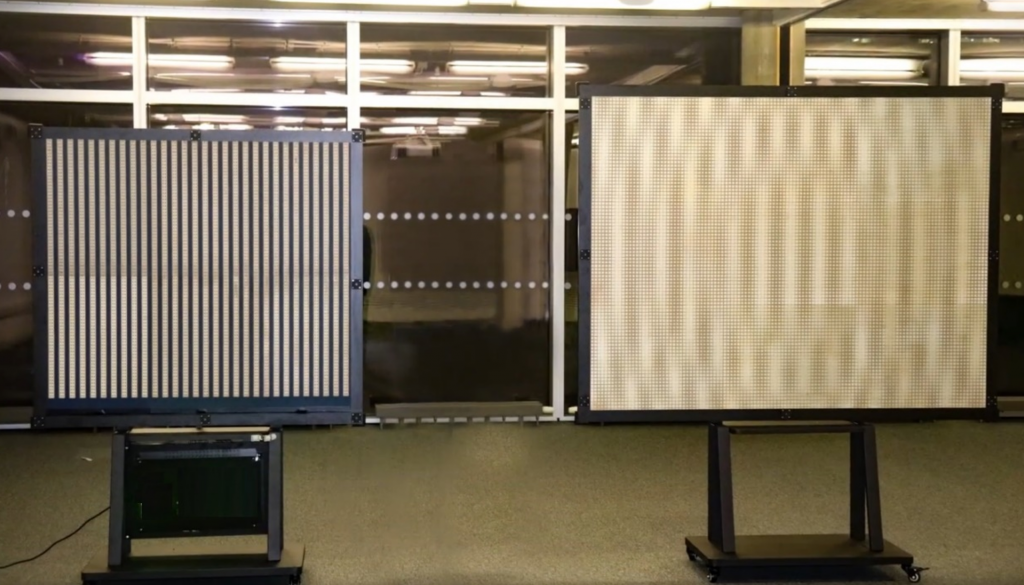

Despite these significant challenges, EECL successfully delivered on time. The completed antennas feature thousands of surface-mounted components and large dielectric panels, precisely assembled and stitched together using exotic materials. Mounted on a custom-built demonstration rig, the antennas worked flawlessly, meeting the University of Surrey’s exacting requirements. The delivered design worked perfectly for the University of Surrey and can be seen on display in the university main entrance.
